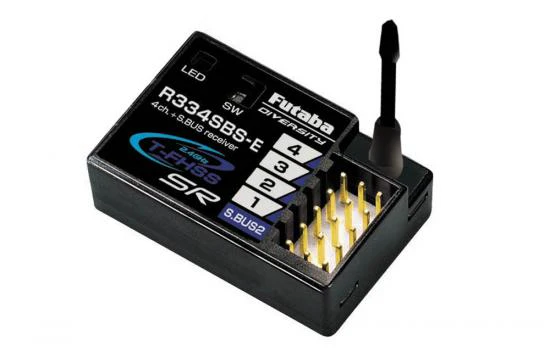

Futaba reciver R334SBS-E 4-Channel 2.4GHz Rx - T-FHSS SR (HV)

The R334SB-E was produced by Futaba specifically for electric RC cars. The compact form, built-in aerial and short external aerial allow it to be tucked away under a body shell for a clean and professional installation without any sacrifice to the performance. You can use the R334SB-E in 'T-FHSS' mode, the faster 'T-FHSS High Speed' mode or even the ultra-responsive 'T-FHSS SR' Super Response mode making it versatile for racers and sport drivers alike. The HV (High Voltage) capability allows you to power it from a wide range of sources (3.7 to 7.4V) so you can extract the best performance from your servos without complex wiring.



&bull: Designed exclusively for electric cars

• Easy to install and use

&bull: T-FHSS SR 'Super Response' mode for ultra-fast operation

• T-FHSS mode for normal use

• Telemetry functionality

• High voltage capability up to 7.4V

• Diversity aerials, one built-in and one short to fit under the body shell

• Only 7.2g in weight!



Please note:

• In SR model you need to use an SR capable servo, also the telemetry and s.bus functions are disabled to enable this fast speed.

• In T-FHSS high speed mode, analogue servos cannot be used (Futaba digital or brushless required)

Specifications

Fail Safe F/S and Battery F/S (Dependant on the Tx used)

Modulation Futaba T-FHSS SR & T-FHSS

S.BUS S.BUS2

Weight 7.2g (0.25oz)

Voltage 3.7 - 7.4V

Frequency 2.4GHz

Channels 4

Dimensions 33.9 x 22.3 x 11.3mm (1.33 x 0.88 x 0.44 Inch)

Aerial Length 1x Built-In & 1x Protruding from the case

Power Output 10mW EIRP
