Reve D RD Spec Brushless ESC Elite RE-ELT

The Reve D “Elite” is a 100A ESC (elecronis speed controller) that combines the best power for RC drifting with high operability that responds linearly to throttle operation.



The drift setting data supervised by Hayato Matsuzaki of the Reve D development team is pre-installed so that not only high-end users but also users who are just starting out in RC drifting can enjoy optimal drift driving, so you can enjoy the performance of “Elite” immediately after installing it on your machine.



Various data settings can be changed instantly by connecting the smartphone with the dedicated app downloaded to the Elite via Bluetooth, and you can instantly set up from five items:



GENERAL

THROTTLE

BRAKE

BOOST

TURBO

Please note: A separate Bluetooth module for the Elite (part number: RE-ELT-BT) is required to change the data.

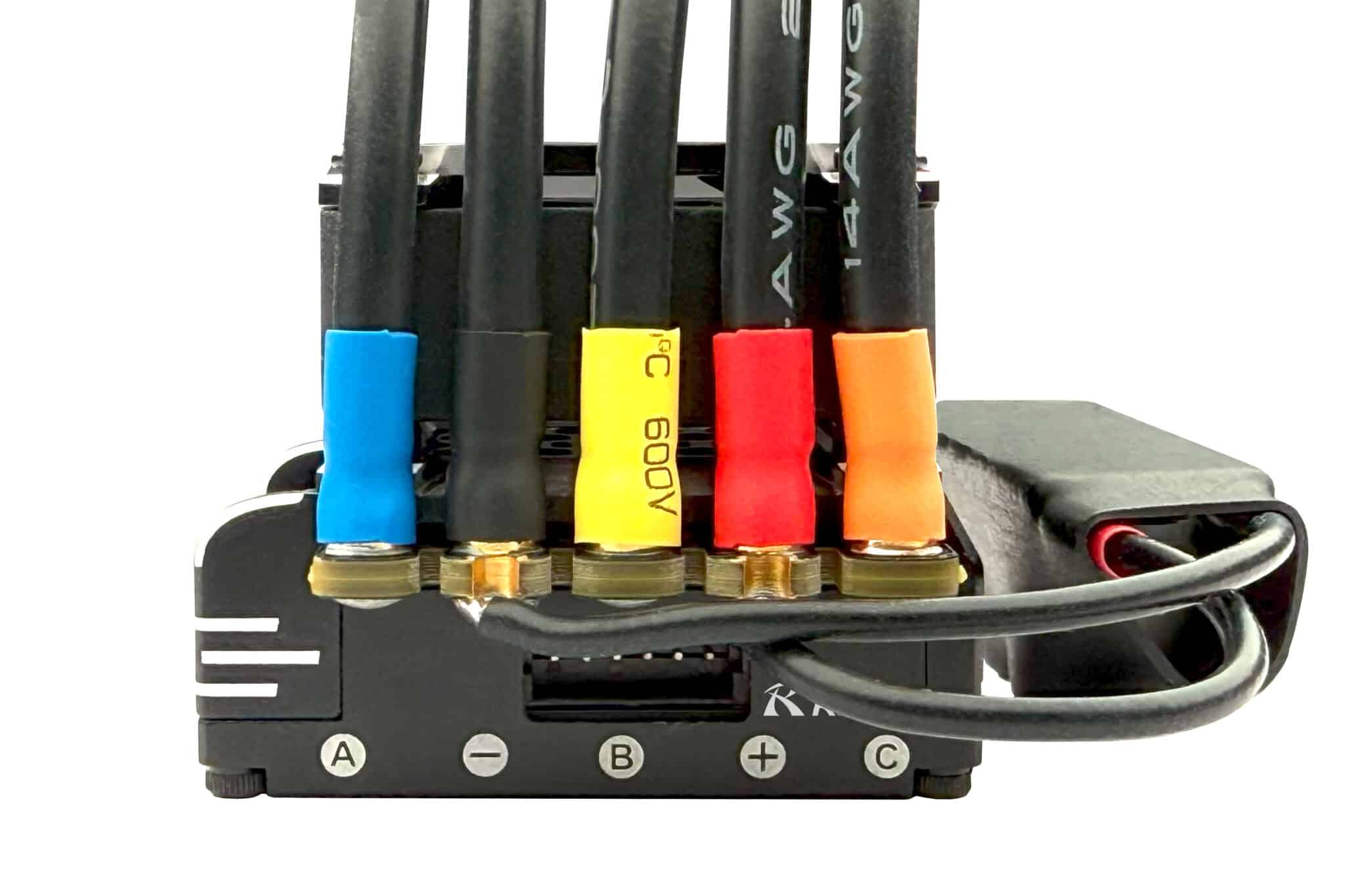

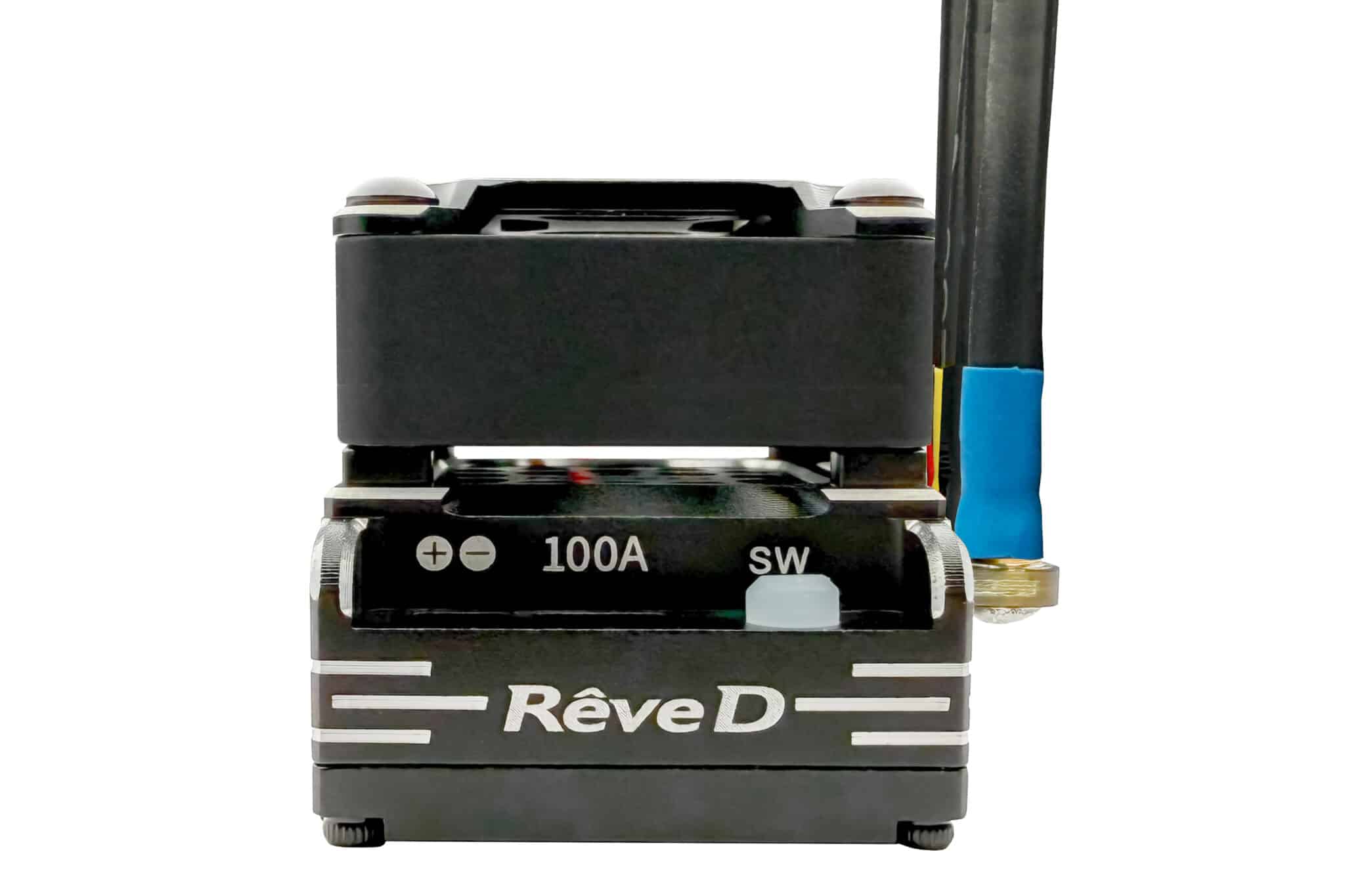

The full aluminum casing with excellent heat dissipation adopts a slim design with a total height of 16.5 mm, and a cooling fan is also included, so it can handle long driving with ease. A large-capacity capacitor to suppress voltage drops and 14-gauge black silicone wire are pre-wired to the motor and battery terminals.



Try out the RD Spec Brushless ESC “Elite”, the ultimate standard ESC!



Specs

Continuous Current ：100A

Peak Current ：600A

Input Voltage ：2S-3S Li-Po

BEC Input ：6.0V / 4A

Size ：L 38 / W 31.0 / H 16.5mm

Weight：48.5g

Program Via ：Smart Phone

APP Support ：Apple ios / Android

Waterproof ：Not Available

ESC Applicable ：1/10 Scale Drifting

Accessories

Large capacity capacitor

Cooling fan

Pre-wired 14 gauge black silicone wire
